Esocoo-11 Series ESD functionality SMT Cover Tape Extender

+86 755 28177560

Detailed description

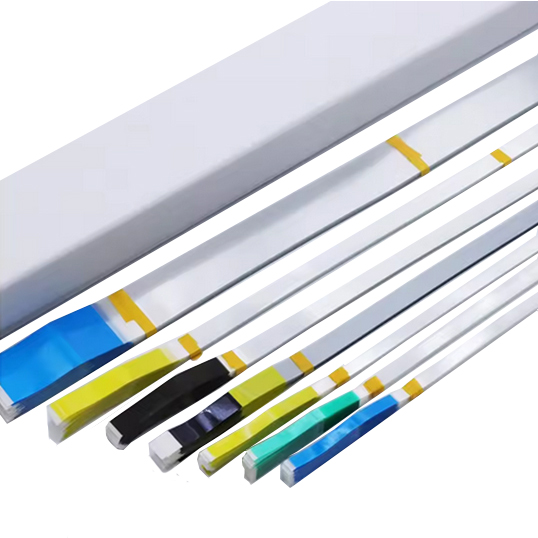

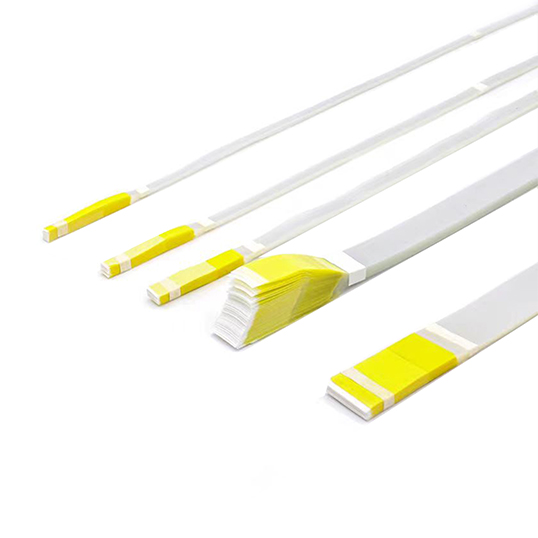

11 series SMT cover tape extender yellow/black/blue/green 8mm/12mm/16mm/24mm/32mm/44mm/56mm/72mm for all SMT machines

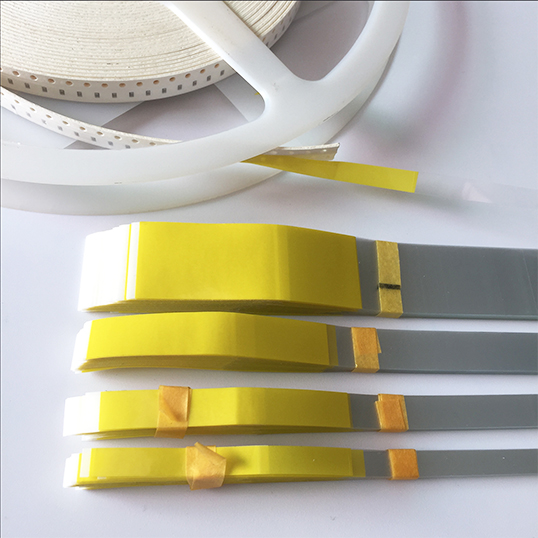

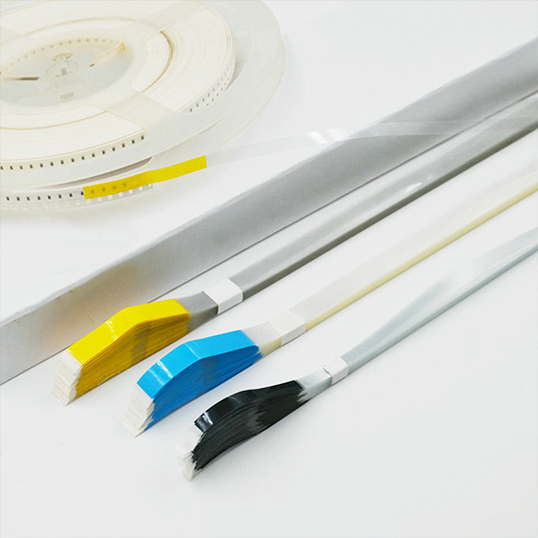

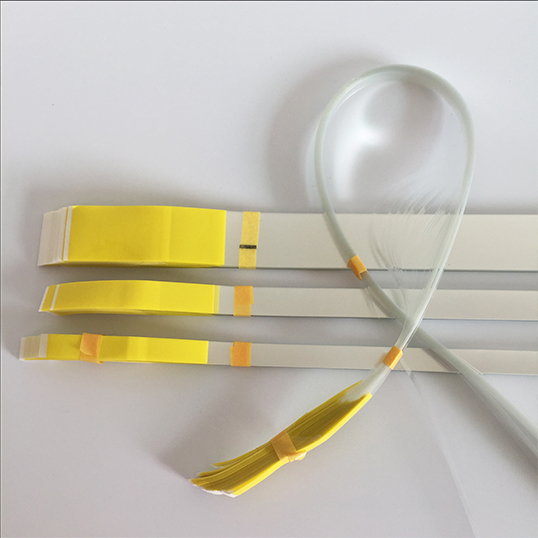

11 series SMT cover tape extender is to put the remaining small carrier parts on the feeder for normal use without wasting materials through the traction of the material receiving leader.

Features:

1. SMT cover tape extender consists of PET film and adhesive tape.
PET is divided into two kinds of materials, one is anti-static (ESD) and the other is ordinary material.

2. The material is transparent, tough and has strong tensile strength.

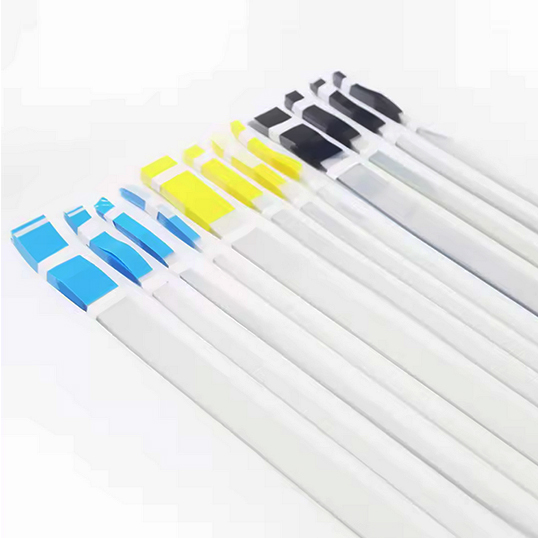

3. Adhesive tape are available in yellow, blue, green, black, silver (aluminum foil), etc. Customers can choose according to the needs.

4. Factories with high production process requirements can choose anti-static splicing tapes.

5.The currently commonly used specifications of the splicing leader are 8, 12, 16, 24, 32, 44, 56, 72mm.

6. With ESD functionality optional.

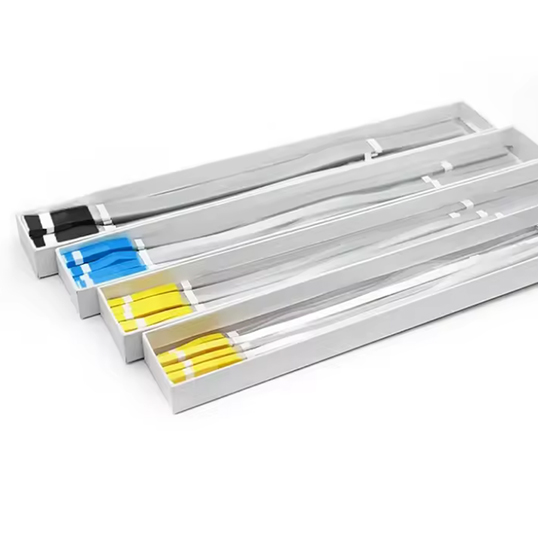

Part No.	Splice tape size	Part No.	Splice tape size	Qty/box	Carrier tape size
ESOCOO-1108	5*396mm	ESOCOO-1109	5*508mm	500pcs	08mm
ESOCOO-1112	7x396mm	ESOCOO-1113	7x508mm	500pcs	12mm
ESOCOO-1116	9×396mm	ESOCOO-1117	9×508mm	500pcs	16mm
ESOCOO-1124	18×396mm	ESOCOO-1125	18×508mm	250pcs	24mm
ESOCOO-1132	25x396mm	ESOCOO-1133	25x508mm	250pcs	32mm
ESOCOO-1144	30x396mm	ESOCOO-1145	30x508mm	250pcs	44mm
ESOCOO-1156	42x396mm	ESOCOO-1157	42x508mm	250pcs	56mm
ESOCOO-1172	58*396mm	ESOCOO-1173	58*508mm	250pcs	72mm

Application: The main purpose of the SMT splicing tape is to use the tape to reduce the waste of components, improve production efficiency, and reduce production costs. It is mainly used in SMT patch processing in electronic manufacturing industry.

Attentions:

Never touch adhesive tape side while using.
